Motorcycle Drive Chain
This is designed for high impact applications. All material and heat treatment are carefully calibrated to maximize the tensile strength and stretch resistance to reach its superior overall performance.

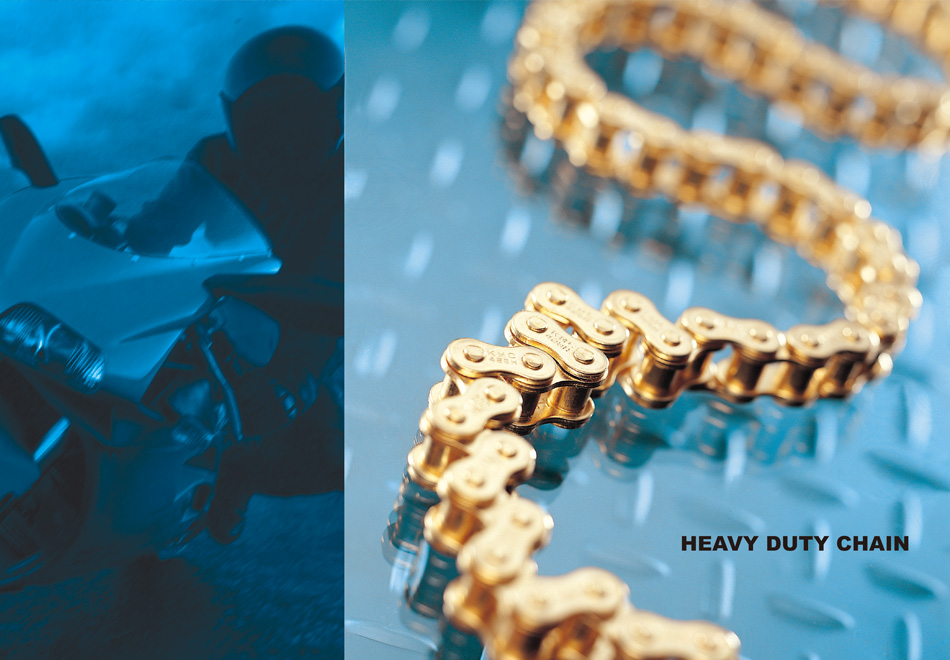

This heavy duty chain is suitable for desert riding where fine sand could be detriment to O-Ring.
This heavy duty chain is suitable for desert riding where fine sand could be detriment to O-Ring.
| Model | Pitch | Roller Link Width (Min) |
Roller Dia (Max) |
Pin Link Plate Thickness |
Roller Link Plate Thickness |
Roller Link Plate Height (Max) |
Pin Dia. (Max) |
Over-all Width Riv. (Max) |
Over-all Width Con. (Max) |
Ave. Tensile Strength |

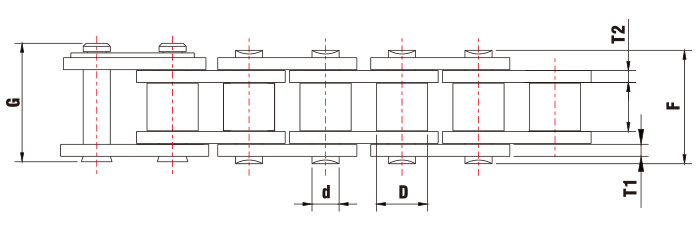

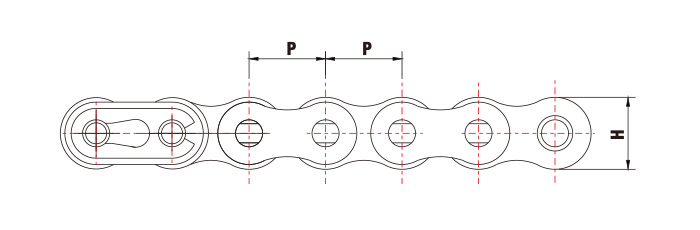

| Symbol | P | W | D | T1 | T2 | H | d | F | G | |
| Unit | mm | mm | mm | mm | mm | mm | mm | mm | mm | kgf |
| 415H | 12.7 | 4.80 | 7.77 | 1.5 | 1.5 | 12.00 | 3.97 | 13.00 | 14.75 | 1790 |
| 420H | 12.7 | 6.35 | 7.77 | 2.0 | 2.0 | 12.00 | 3.97 | 16.80 | 18.55 | 2130 |
| 428H | 12.7 | 7.95 | 8.50 | 1.8 | 1.8 | 12.35 | 4.47 | 17.50 | 19.05 | 2256 |
| 428MH | 12.7 | 7.95 | 8.50 | 2.0 | 2.0 | 12.35 | 4.52 | 18.90 | 20.10 | 2300 |
| 428HG | 12.7 | 7.95 | 8.50 | 2.0 | 2.0 | 12.35 | 4.51 | 18.90 | 20.25 | 2380 |
| 520H | 15.875 | 6.40 | 10.16 | 2.35 | 2.35 | 14.90 | 5.15 | 18.30 | 20.25 | 3120 |
| 530H | 15.875 | 9.60 | 10.16 | 2.35 | 2.35 | 14.90 | 5.15 | 21.60 | 23.55 | 3150 |
