Motorcycle Cam Chain
KMC silent chain is equipped with centerless pins and special shape plates to minimize the noise, which’s lower than standard cam chain.Besides, its tensile strength, stretch resistance, and durability are recommended for higher performance engines.
| Model | Pitch | Roller Link Width (Min) |
Outer Plate Thickness |
Inner Plate Thickness |
Inner Plate Hight (Max) |
Link Height | Pin Dia. (Max) |
Over~all Width Riv. (Max) |
Ave. Tensile Strenght |

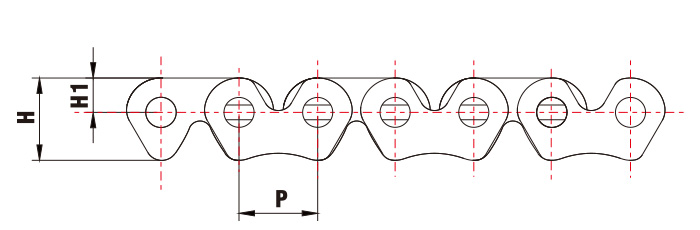

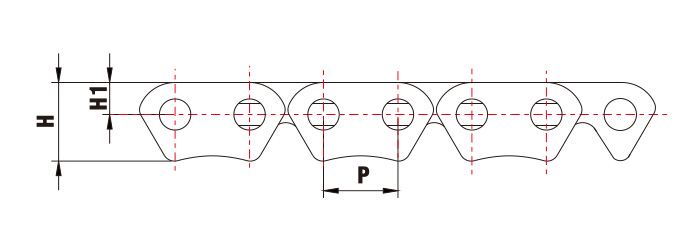

| Symbol | P | W | T1 | T2 | H | H1 | D | F | |
| Unit | mm | mm | mm | mm | mm | mm | mm | mm | kgf |
| 2023LNIP | 6.35 | 3.1 | 0.7 | 1.0 | 6.70 | 2.80 | 2.42 | 6.10 | 600 |

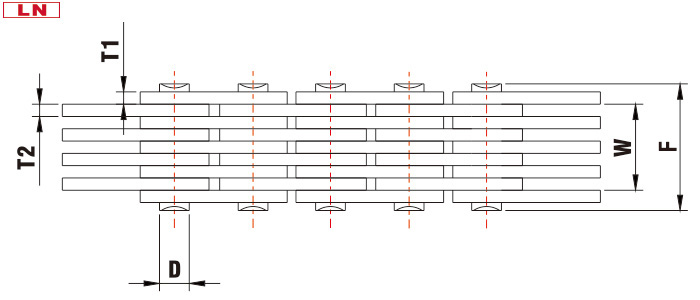

| 2023LN | 6.35 | 3.1 | 0.7 | 1.0 | 6.70 | 2.80 | 2.42 | 6.10 | 600 |
| 2034LN | 6.35 | 5.1 | 0.7 | 1.0 | 6.70 | 2.80 | 2.42 | 8.25 | 800 |

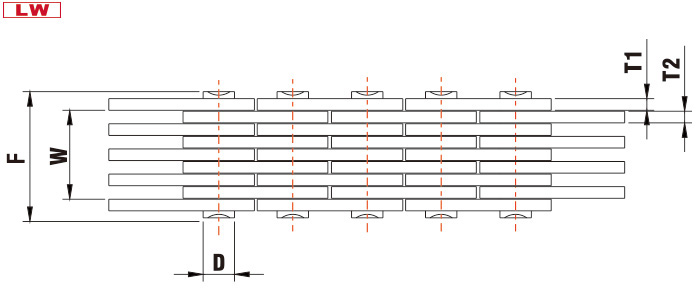

| 2023LW | 6.35 | 3.1 | 0.7 | 1.0 | 6.72 | 2.75 | 2.72 | 6.10 | 560 |
| 2034LW | 6.35 | 5.1 | 0.7 | 1.0 | 6.72 | 2.75 | 2.72 | 8.25 | 720 |
