機車引擎正時鏈條
KMC引擎正時鏈條具有高抗疲勞強度、低磨耗和低噪音特點,應用於四衝程發動機。
Model Pitch Roller Link
Width (Min)
Bushing
Dia (Max)
Pin Link
Plate Thickness
Roller Link
Plate Thickness
Roller Link
Plate Height (Max)
Pin Dia.
(Max)
Over-all
Width Riv. (Max)
Ave. Tensile Strength

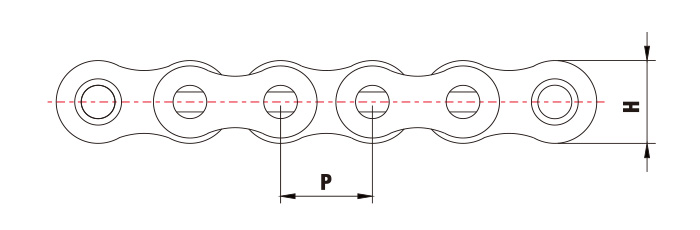

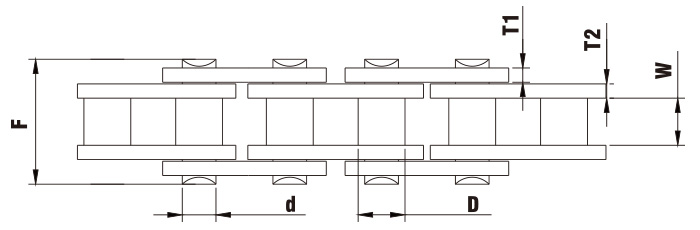

Symbol P W D T1 T2 H d F
Unit mm mm mm mm mm mm mm mm kgf
25 6.35 3.18 3.30 0.7 0.7 5.90 2.30 7.70 450
25HIB 6.35 3.18 3.30 1.0 1.0 5.35 2.00 8.80 470
25H 6.35 3.18 3.30 1.0 1.0 5.90 2.30 8.90 580
25HD 6.35 3.18 3.30 1.0 1.0 5.95 2.31 8.90 600
25HB 6.35 3.18 3.30 1.0 1.5 5.95 2.31 9.90 650
